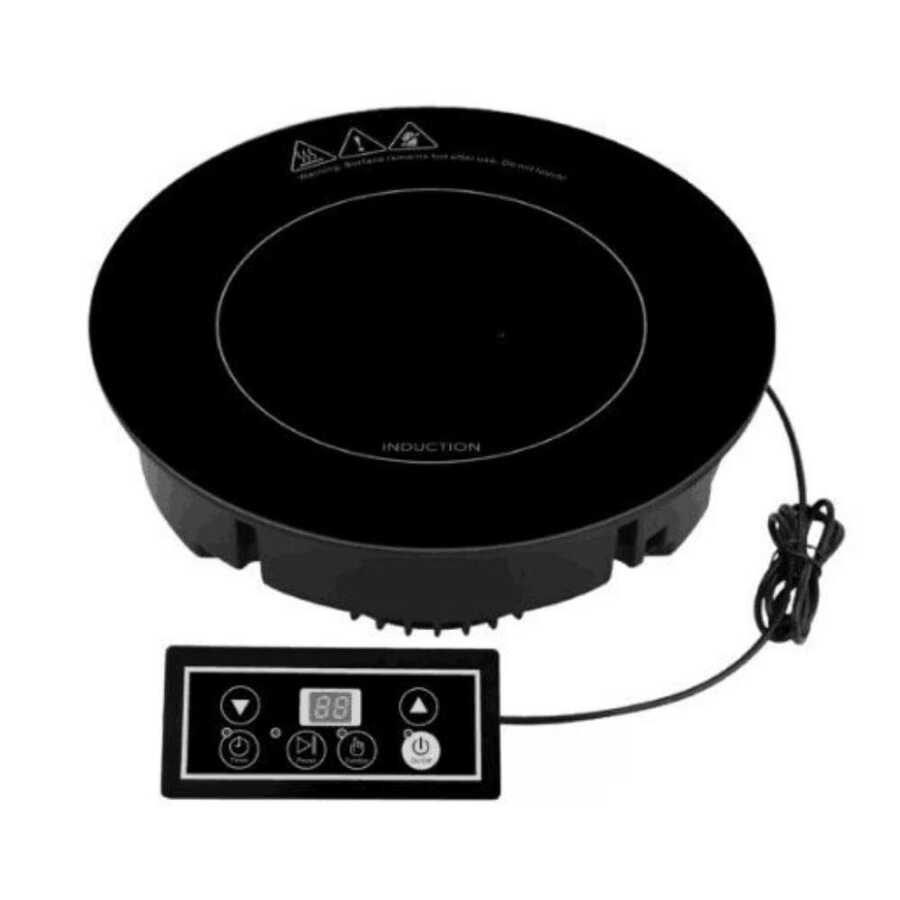

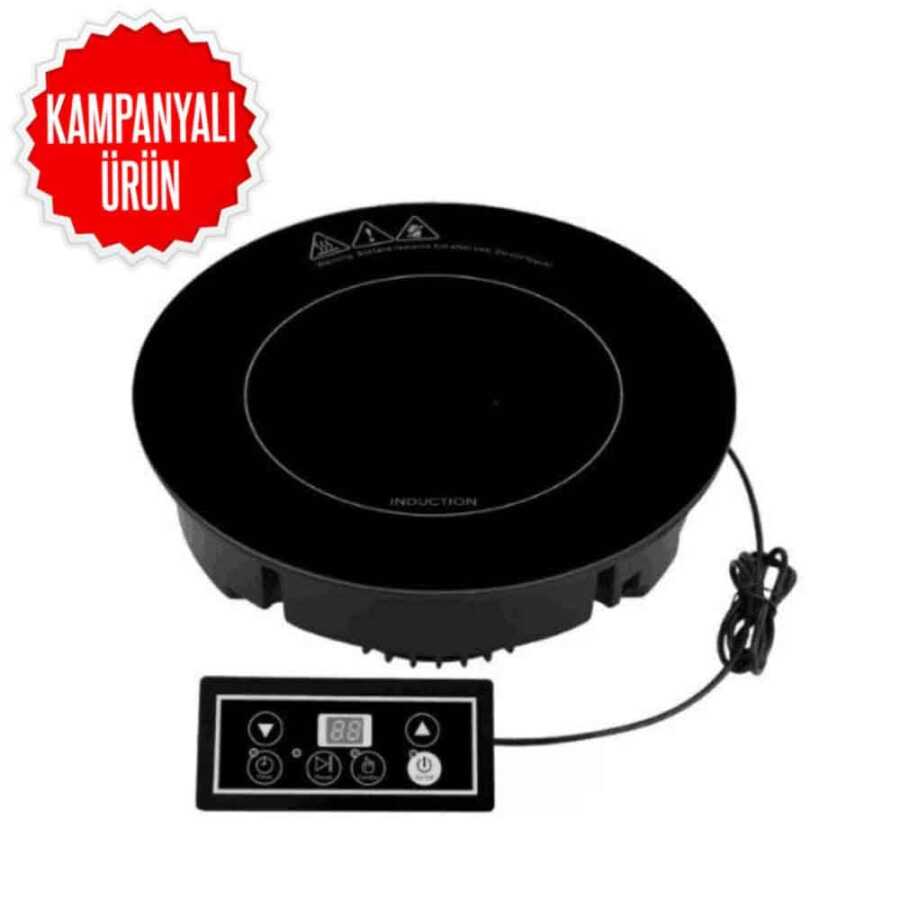

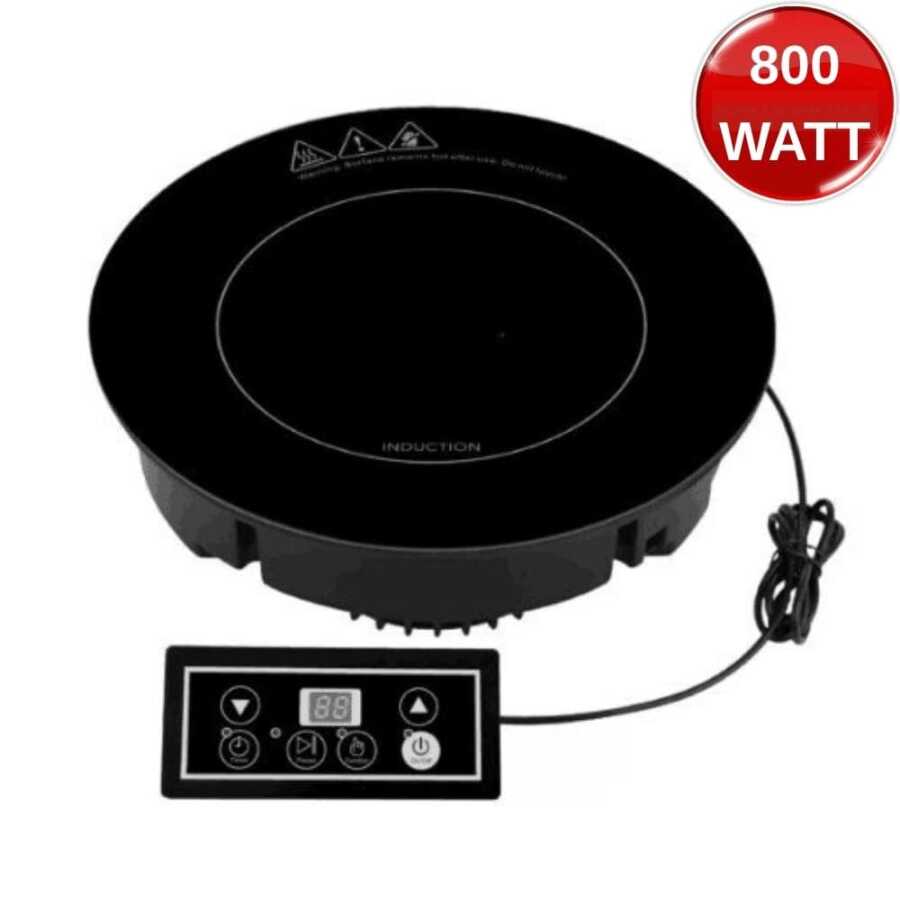

Induction Heater (Ind-01)

Features of induction furnace

1. Microcomputer control, small size, light weight, simple operation and convenient use;

2. Adopt electromagnetic induction heating principle, which has the characteristics of heating speed and high thermal efficiency;

3. Induction cooker has no open flame, no smoke, no waste gas, good safety, cleanliness and hygiene;

4. Flexible use, frying and cooking everything within the allowed power range, firepower can be adjusted as desired;

5. With automatic detection function, after the food is dry and the pot is overheated, the induction cooker will automatically detect and stop heating.

Working principle of induction cooker:

The 220VAC power supply is converted into high-frequency AC power through the circuit and converted into alternating electromagnetic field through the induction coil. When the magnetic lines in the magnetic field pass through the bottom of the iron-containing pot, countless small electric currents will be generated, which will make the pot heat up at a high speed and then heat the food in the pot.

Points to note when using induction cooker

Note before use:

1. Quality sockets should be used and the capacity of the sockets should be greater than 15A. Poor contact of the sockets will cause the burner induction cooker to not work normally.

2. Do not use the induction cooker when the plug cord is damaged or the power plug is not fully inserted into the socket.

3. Do not bend, bind or apply excessive force to the wire, otherwise damage may occur.

4. Do not insert any obstacles into the plug or socket of this machine.

5. Do not insert the plug into a socket where many other electrical appliances are plugged in; the current will not exceed the socket's limit.

6. Do not use the induction hob in wet, damp or near flames.

7. After the induction cooker has been placed for a while, if it is to be used again, please turn it on for 10 minutes to stabilize the electronic components inside the induction cooker, and then turn it on for functional operation.

Note when using :

1. Please place the pot in the center of the induction cooker, and do not place the furnace body on a flat bottom surface.

2. To prevent the oven from overheating, do not block the air inlet or outlet.

3. Do not use the induction hob in a place where children can reach or use it by themselves.

4. Never overheat an empty pot.

5. Do not place metal objects such as knives, blades, spoons, pot lids, and aluminum foil on the top plate, and do not place watches, audio tapes, credit cards, magnetic disks, bank accounts, and other items that are sensitive to magnetic fields on it. To operate the induction hob, carry them on the surface of the stove or carry them with you.

6. Do not carry the induction hob with pots and pans.

7. Do not use the induction hob in places where there is not enough space around it. Keep the front, left and right sides of the induction hob clean.

8. Do not use metal wires and foreign objects to enter the gaps in the suction or exhaust ports.

9. Do not drop objects on the top plate. If cracks appear on the surface, immediately turn off the power, unplug the power plug, and send it for repair.

10. Try to keep the pot still during the adjustment process, because frequent operation of the pot will cause the current of the induction cooker to increase frequently, which will cause damage to the induction cooker.

11. The water in the pots should not be filled for more than seven minutes to prevent short circuits due to overflow after heating.

12. Please stay away from water sources and places with very hot air, steam and humidity.

13. When there is dirt on the microcrystalline panel and the bottom of the pot, it will burn when used continuously, making it difficult to clean.

14. To prevent the pot from sliding off the kitchen surface and scalding your body, do not fill the bottom of the pot with liquid or allow the liquid in the pot to overflow.

15. Maintain a good use environment, please avoid insects entering or living inside the oven shell, so as not to cause circuit failure.

Note after use :

2. The high temperature heat generated by the pot after cooking will be transmitted to the top plate of the induction cooker. Do not touch the top plate immediately.

3. Never unplug by pulling the cord.

4. Please do not keep the power cord connected when you confirm that the induction hob is not in use.

Induction hob maintenance and storage

Power requirement :

1. When using the induction cooker, it is necessary to use the grounding wire socket whose technical indicators are in accordance with the standard. It is absolutely necessary to avoid the socket that is loose and unstable after the plug is inserted and does not comply with the national standards, which is easy to cause instantaneous ignition and increase the current, which is more dangerous and easy to damage the induction cooker.

2. Sockets should not be placed directly above the induction cooker to prevent heat from rising and the power supply from burning out.

3. If there are electric appliances that are prone to sudden current changes and are frequent, such as electric welders, impact drills, electric hammers, etc., or other high-power electric appliances such as refrigerators, washing machines, water heaters, etc. used simultaneously with the induction cooker. Induction cookers are easy to damage and should be taken care of. It is best to use a patch panel with an overcurrent protection device or choose a low-cost power supply. In order not to damage the induction cooker, it is best not to use it at the same time or try not to switch other electrical appliances while the induction cooker is working.

Heat distribution of induction cooker:

1. When the induction cooker is working, there is a certain temperature in the appliance. In order to make the induction cooker play a better role, work normally and extend its service life, this part of the heat should be discharged in time, so try to place the induction cooker in a position conducive to air circulation and heat dissipation.

Cleaning the induction cooker:

1. Please unplug the power cord before brushing.

2. When the panel is dirty or due to oil stains, reWhen the device is broken, please wipe it with mosquito repellent and then clean it with a towel. When the machine body and control panel are dirty, wipe it with a soft wet cloth. If the oil stain is difficult to wipe, wipe it with a neutral detergent and then wipe it with a soft wet cleaning gun until there is no residue.

3. And do not wash it directly with water to scrub it or immerse the kit in water.

4. Always keep your device clean to prevent cockroaches, insects, etc. from entering the oven and to prevent short-circuit damage to the induction cooker.

5. It is strictly forbidden to use organic solvents or flammable and explosive materials to approach or wipe the induction cooker.

6. It is forbidden to wipe the control panel of the induction cooker with a wet cloth to prevent damage to the induction cooker due to short circuit caused by penetration of conductive liquid.

Unforeseen conditions occur :

If abnormal shutdown or false alarm is detected during use of the induction cooker, you should immediately stop using it and contact and consult the manufacturer's maintenance department in time. If there is any problem, please ask professional maintenance personnel to deal with the problem. Never disassemble it by yourself.

Induction cooker collection :

When the induction cooker is not used for a long time, it should be cleaned and dried first, then packed and stored in plastic bags. Do not store in a humid environment, but place it in a dry place, and try to put some desiccant and cockroach repellent in the package to prevent squeezing for reuse.

Common faults and treatment methods of induction cookers:

1. Common faults and troubleshooting on induction hobs :

Common faults on induction hobs Inspection and elimination methods

I didn't hear a beep when I plugged it in. The source indicator light is not on. 1. Is the plug falling out?

2.Is the automatic switch or fuse open?

Stop the machine after giving a short "beep" and "beep" warning for 20 seconds. 1. Is the potus suitable?

2. Is the pan placed in the center of the flat plate?

3. Is the bottom diameter of the pot less than 12cm?

4. Whether the pot is removed from the stove surface after use (do not put the pot on the stove surface after use).

5. Is the thermistor turned on?

When used, it suddenly turns off and makes a "di" and "di" sound (about 10 seconds) 1. Is the ambient temperature high?

2. Are the air inlet and outlet ports blocked?

3. The internal temperature may be too high and may restart after about 4 minutes.

When in use, shut down suddenly and make a long beep or beep sound (about 6 seconds). 4. Whether the wrong function key is pressed.

5. The water inside the pot is dried.

6. Use the pot to wash the hot pot. The soup is too thick or the water is not enough.

The temperature cannot be controlled during use. 7. Whether the bottom of the pot used is flat or the middle part is sunken more than 2mm.

The use process stops automaticallyand the induction cooker is returned to the room without testing the induction cooker. 1. If the line magnetic field interference is easy to explain, a filter (voltage regulator) should be installed.

2. is not easy to use, replace the accessories.

2. Common machine faults and their elimination

Fault phenomenon Fault-cause analysis Elimination methods and measures :

The fault code "EO" appears. No or wrong pot. Check the condition of the pot to see if there is a magnetic pot.

"E1" Touch machine can not touch it while working. Check whether the power supply voltage is normal or whether the machine uses a socket with other appliances at the same time, resulting in sufficient power supply voltage.

"E2" Overvoltage protection, overvoltage Check whether the power consumption voltage is normal or whether the machine uses a socket with other applicants at the same time, resulting in sufficient power supply voltage.

"E3" Oven surface thermistor short-circuited

"E4" Open circuit oven surface thermistor

"E5" IGBT thermistor short circuit (tube temperature sensitivity)

Resistanceshort circuitmachine internal temperaturetoo high) Check whether the IGBT thermistor is faulty or whether the induction cooker ventilation is normal.

"E6" IGBT thermistor open circuit

The touch machine can't touch it when it is working. There is water on the touch panel or the electronic components of the control panel are broken. Dry the water and dry the net weight. Just turn it again or replace the control panel.

H6.H8After a few minutes of use, two lights flash and short beeps continuously: 20 seconds later, it automatically stops. The fan does not rotate or the oven temperature is too high. Please check whether the fan is installed or whether the machine is well ventilated. If the machine is not well ventilated, the temperature inside the oven will be too high, and this will occur.

Special oven engineering application instructions(key) :

Ⅰ. Installation considerations

Provide proper ventilation at the bottom of the machine to facilitate heat dissipation when the machine is running. Do not block the air inlet and the counter air outlet at the bottom of the machine. This will cause overheating inside the machine and cause the machine to fail.

Ⅱ. Power distribution instructions

1. The busbar adopts three-phase electricity and is routed according to the three-phase four-wire system after entering the substation through the transformer, and the design load of the power supply and lines should be 1.3 times the actual load.

1. Each socket is limited to one induction cooker, and it is absolutely necessary to avoid using porous sockets to prevent mutual influence between induction cookers. Please use a switched socket above AC220V15A (furnaces with a total power of over 2000W must use a socket with an air switch of 15A or above). Never plug two sockets into more than one machine at the same time, so that the socket will exceed its carrying capacity when working, causing the socket to burn or a larger line fault.

Do not turn off the induction cooker by pulling out the power plug, otherwise it will easily cause electric shock or leakage!

2. After the power distribution is completed, the operation test should be carried out.All induction cookers should be put into the pot with water, the power supply should be turned on so that the induction cookers are brought to the boiling state in the pot, and then the firepower should be reduced to the second gear to observe the induction cookers working normally for 2 hours. If they are normal, switch to the third gear position to check whether they are heated or intermittently checked, and check the flexibility and operation of the induction cooker switch. In particular, check whether the cables in the distribution line are heated (if the cables are pulled, it means that the distribution load is lower than the electric load and the diameter of the distribution line should be increased).

3. Do not use the lines of the induction cooker power supply system together with lighting, heating, kitchen, cooling and other power distribution systems to prevent mutual interference.

4. Note: The corresponding loads of the three phases must be balanced, otherwise there will be a very small difference in the phase voltages caused by phase deviation, which will cause the undervoltage or overvoltage protection of the induction cooker. In order to prevent mutual magnetic interference caused by multiple lines laid together, there should be separate auxiliary lines in the three main line distribution.

5. This problem can be solved if the installation filter (voltage stabilization) that causes interference is installed.

6. Since dishwashing is a business matter in the city, it is necessary to establish a safe electricity use system, a patrol control system of electricity use, a special electricity management system, etc., especially for the configuration and use of electric fire-fighting facilities.

Instructions for operating and using induction cooker

Using special induction cooker for chafing dish :

2. Insert the power plug into the special socket of AC220V50HZ. The socket requirement is greater than 15A. The power indicator light is on, and the induction cooker is in the standby state;

3. Press the "Switch" key, the induction cooker enters the default heating state, and the heating indicator is on;

4. Press the "Function Selection" key, select as needed, and enter the desired state. When you enter a certain state, the corresponding indicator is on;

5. Timing setting: In the timing state, press the "Turn Up" key to increase the setting time, and press the scroll increase key one at a time each; Press "Down" key to shorten the setting time, and each time you press this key, you will reduce the time shift :

6. Heating setting: In the heating state, press the "Turn Up" key to increase the set firepower. Each press will increase the firing; Press the "Down" key to reduce the charged firepower, and each time you press this key, you will reduce one firepower gear ;

7. Constant temperature setting: In the constant temperature state, press the "Turn Up" key to increase the setting temperature, and each time you press this key, you will increase the temperature gear; Press the "Down" key to reduce the setting temperature, and each time you press this key, you will reduce the time temperature gear;

8. Usually all operations can be completed by only pressing the "switch" key and the "on" and "off" keys.

9. After cooking, please turn off the power and remove the pot from the induction cooker.

Schematic diagram of the operation panel of the induction cooker :

Switch wire control Knob wire control

Wired remote control Remote control

Touch switch Rotary switch

Dimensions Installation Table Opening Opening of Ignited Boiler

Model Panel size Opening size Steel ring opening size surface thickness

H3 300*300 272*272 305*305 7~8

H1 Ø288 Ø268 Ø294 7~8

H5 Ø245 Ø230 Ø255 7~8

H6 Ø196 Ø186 Ø200 7~8

H8 215*175 208*168 220*180 7~8

H2 250*210 238*190 7~8

This form is for reference only and is not the manufacturer's is subject to its prototype.

Package/Box: 1/12

Package Size   : 46x63x27 cm
